Drill Blanks
| Item Number | Stock Code | Description |
Drawing |
| CBT-21X10X5 HM9 |
1 |
Drag Bit Insert |
 |
| CBT-44X19X4 HMA9C |
8 |
Drag Bit Insert |  |
| CBT-50X25X10 HM9 |
1 |
Drag Bit Insert |  |
| CBT179 HMA11C |
1 | Drag Bit Insert- H=16,W=9.5, T=4.8 |
 |
| CBT237 HMA11C |
1 | Drag Bit Insert- H=12.7,W=25.4, T=4.8 |
 |
| CBT467 HMA11C |
1 | Drag Bit Insert- H=15.9,W=28.6, T=6.4 |
 |
| E27L HMA7C |
8 | Eccentric 2 Wing Drill Bit Blank |
 |
| E27L-VC1 HMA7C |
8 |
Eccentric 2 Wing Drill Bit Blank. Patented high performance geometry. |
 |
| E27LN-VC1 HMA7C |
8 |
Eccentric 2 Wing Drill Bit Blank. Patented high performance geometry. |
 |
| E27R HMA7C | 8 |
Eccentric 2 Wing Drill Bit Blank |
 |
| E27R-VC1 HMA7C |
8 | Eccentric 2 Wing Drill Bit Blank. Pat. HPG |
 |
| E27RN-VC1 HMA7C |
8 |
Eccentric 2 Wing Drill Bit Blank. Pat HPG. |
|
| E28L HMA8 | 1 |
Eccentric Bit Blank- QM2728L |
 |
| E28R HMA8 | 1 |
Eccentric Bit Blank- QM2728R |
 |
| E35L HM9 | 1 | Eccentric 2 Wing Drill Bit Blank |
 |
| E35R HM9 | 3 |
Eccentric 2 Wing Drill Bit Blank |
 |
| E43L HM9 | 3 | Eccentric 2 Wing Drill Bit Blank |
 |
| E43R HM9 | 3 | Eccentric 2 Wing Drill Bit Blank |
 |
| E56L HM9 | 1 | Eccentric 2 Wing Drill Bit Blank |
 |
| E56R HM9 | 1 | Eccentric 2 Wing Drill Bit Blank |
 |
| GP12.5OD HMK20 | 1 |
Gripper Pad- D=12.5, T=4 |
 |
| JT2209 HM8C | 1 |
Gripper Pad PIA4-445 |  |
| JT2209-N HM8C | 1 |
Gripper Pad PIA4-445 NI Coated |
|
| JT2209-NN HM8C | 1 |
Gripper Pad PIA4-445 NI Coated, width 8.8, height 6.4 |
 |
| KS27X4.5-V1 HM8C | 8 |
Spade Bit Insert-K Style Pat. HPG D=27mm T=4.5mm |
 |

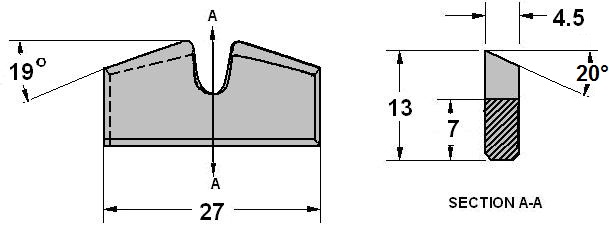

| KS27X4.5-V2 HM8C | 8 | Spade Bit Insert-K Style Pat. HPG D=27mm T=4.5mm |
 |
| KS27N HMA8 | 1 | Spade Bit Insert- K Style D=27mm T=3.5mm |
 |
| KS28N HM7C | 8 | Spade Bit Insert K Style D=28mm, T=3.5mm |
 |
| NS28X4.0-V2 HM8 | 1 | Spade bit Insert-N Type Pat. HPG D=28mm T=4mm |
 |
| MM079 HM8C | 1 |
Shaped Blank-Drill Bit Insert |  |
| MM080 HM8C | 9 | Shaped Blank- Drill Bit Insert |
 |
| MM080-WB114 HMA9C |
1 | Shaped Blank-Drill Bit Insert | |
| MM080-WB127 HMA9C |
1 |
Shaped Blank-Drill Bit Insert |  |

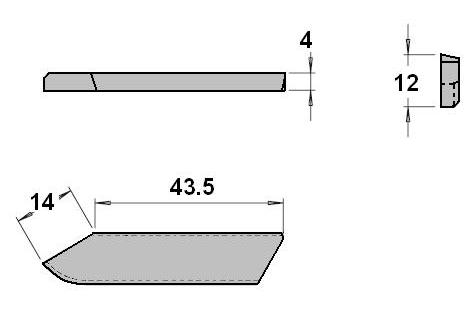

| MM081- SPB102A HMA11C |
1 |
Shaped Blank-SPB127 Drill Bit Insert |
 |

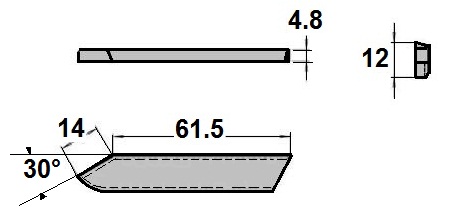

| MM081-SPB127- 1A HMA11C |
1 | Shaped Blank- SPB127 Drill Bit Insert |
 |
| MM081-SPB127- 2A HMA11C |
1 | Shaped Blank- SPB127 Wing Insert |
 |
| S21X13-0 HM8C |
9 | Spade Bit Insert W=21mm Neutral |
 |
| S25x13-0 HM8C | 9 | Spade Bit Insert W=25mm Neutral |
 |
| S26x4.5-0 HM8C |
1 | Spade Bit Insert W=26mm Neutral |
 |

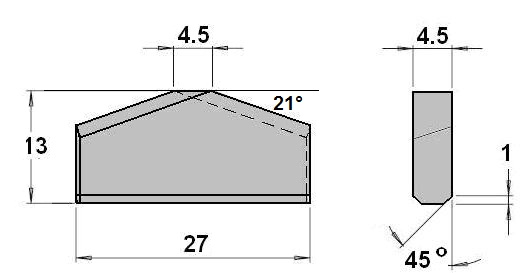

| S27X4.5-VC1 HM8C |
3 | Spade Bit Insert- Pat HPG D=27, T=4.5, A=15°-25° |
 |

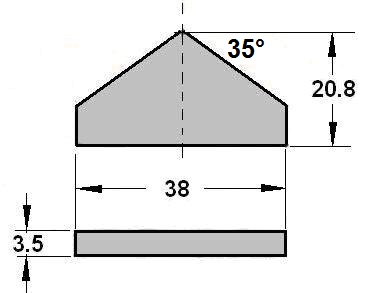

| S38X3.5-0 HM8C |
1 | Spade Bit Insert D=38mm Neutral |
 |
| S38X4.5-0 HM9 | 1 | Shaped Blank For B1002 |
 |
| SDI-16X20.5 HM6 |
3 | Spherical Dome Insert D=16mm, L=20.5mm |
 |
| SDI-16X24 HM6 | 3 | Spherical Dome Insert D=16mm, L=24mm |
 |
| SDI-16X26 HM6 | 3 | Spherical Dome Insert D=16mm, L=26mm |
 |

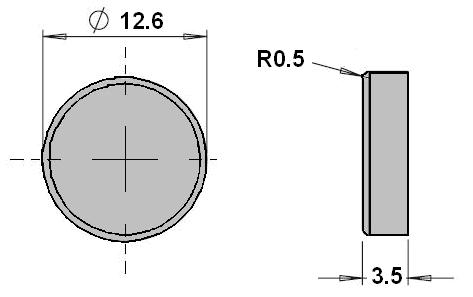

| SIR-12.5X3.5 HM10 (OR HM9, Item class 1) |
1 | Stabilizer Insert PIA4-1151 D=12.6mm |
 |

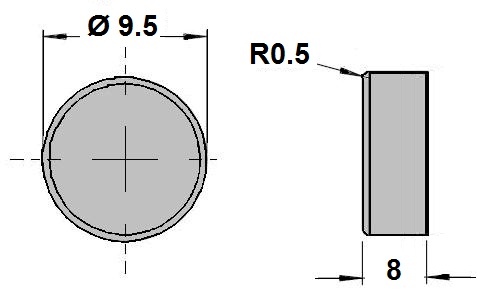

| SIRS-9.5X8.0 HM10 |
3 | Stabilizer Insert D=3/8 T=5/16 Serrated |
 |

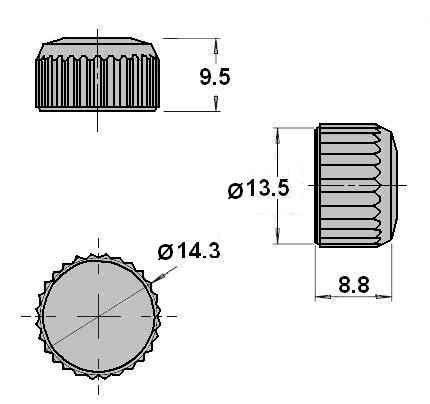

| SIRS14.3X9.5 HM10 |
1 | Stabilizer Insert- D=9/16’’, T=3/8’’ Serrated |
 |
