Conical Picks
CONICAL PICK -55
| Part Number | Stock Code | Description
|
Drawing |

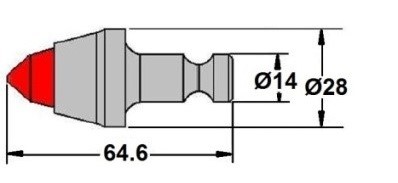

| CP01
(CP055FB-16DCC-RPR) |
1
|
Full Body 16mm Cone Cap |
|
CONICAL PICK -74
| Part Number | Stock Code | Description
|
Drawing |

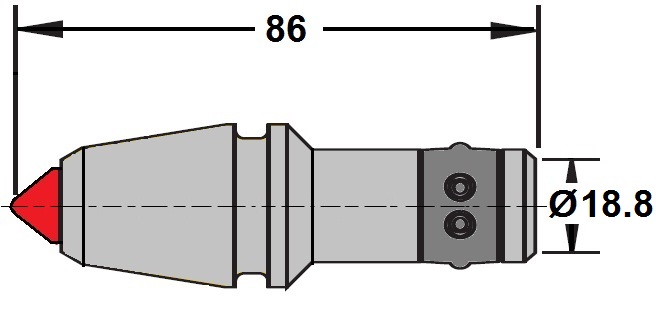

| CP10
(CP074GNB-12SCI-SR) |
1
|
Grooved/Narrow Body 12mm S/Cone Insert |
|

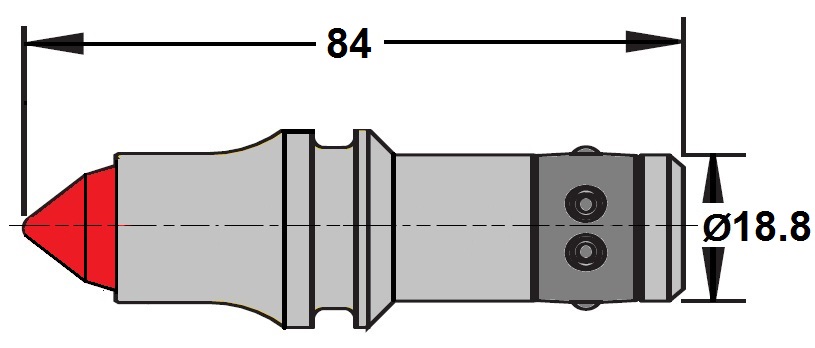

| CP13
(CP074GNB-16DCC-SR) |
1
|
Conical- 74 Ser
Grooved/Narrow Body 16mm D/Cone Cap |
 |
CONICAL PICK -76
| Part Number | Stock Code | Description
|
Drawing |

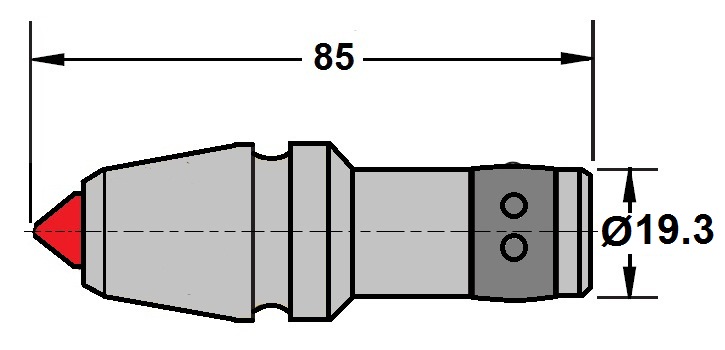

| CP20
(CP076GNB-12SCI-SR) |
1
|
Grooved Narrow Body 12mm S/Cone Insert |
|

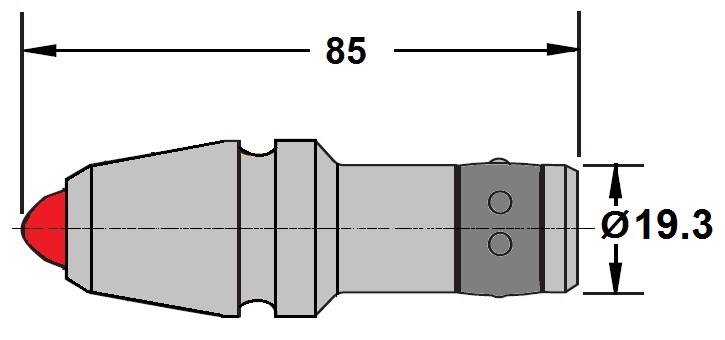

| CP20B
(CP076GNB-12DCI-SR) |
1
|
Conical- 76 Ser
Grooved Narrow Body 12mm Cone Insert |
 |

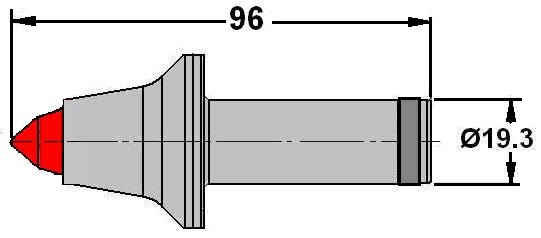

| CP21
(CP076FB-16DCC-CR) |
1 | Conical- 76 Ser
Full Body 16mm D/Cone Cap |
 |

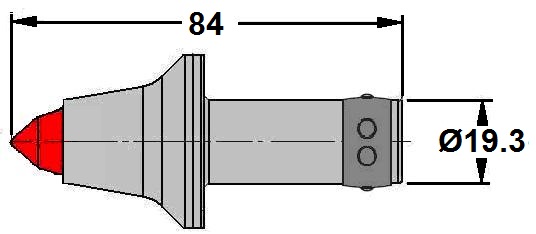

| CP22
(CP076FB-16DCC-SR) |
1 | Conical- 76 Ser
Full Body 16mm D/Cone Cap |
 |

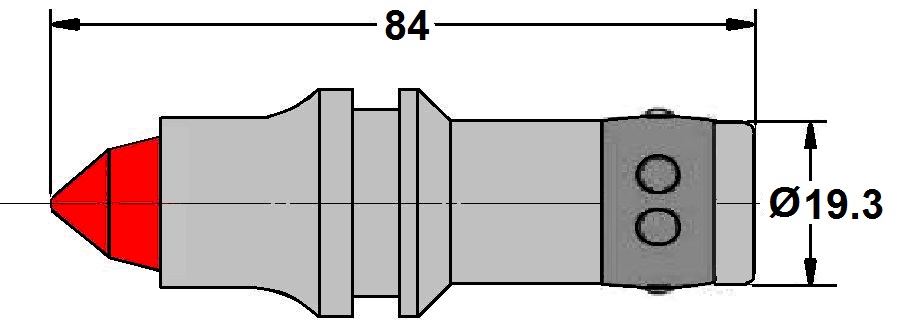

| CP23
(CP076GNB-16DCC-SR) |
1 | Conical- 76 Ser
Grooved Narrow Body 16mm D/Cone Cap |
 |

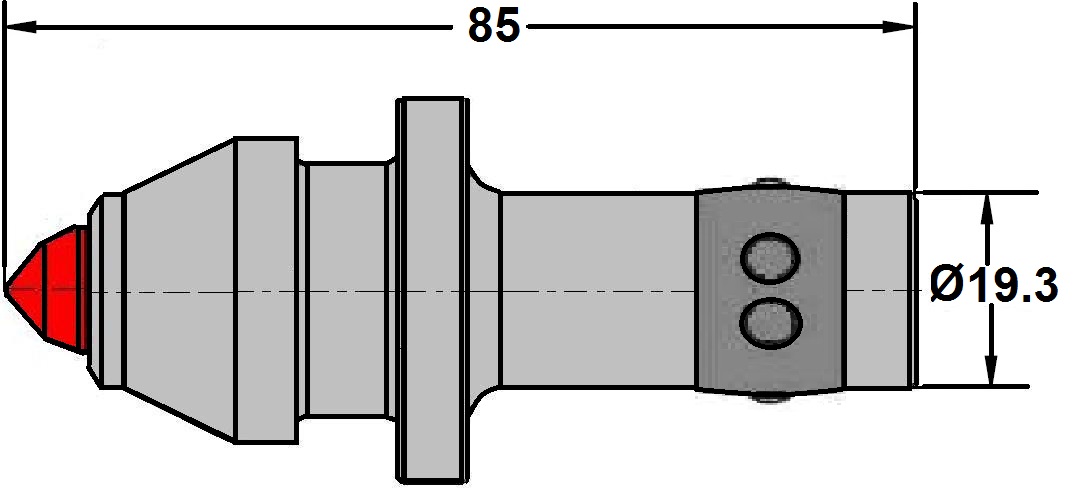

| CP24
(CP076GFB-16DCC-SR) |
1 | Conical- 76 Ser
Full Body 16mm D/Cone Cap |
 |

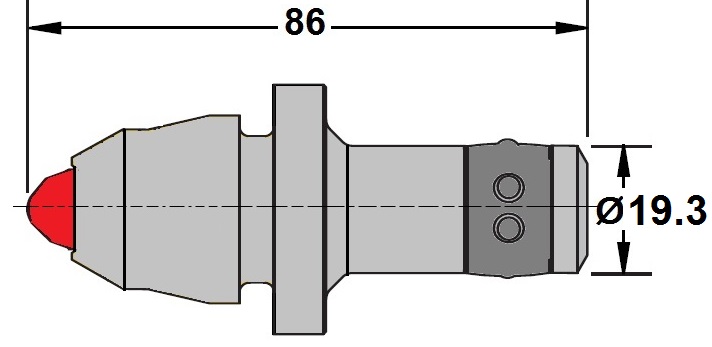

| CP25
(CP076GFB-12DCI-SR) |
1 | Conical- 76 Ser
Grooved Flanged Body 12mm Cone Insert |
 |

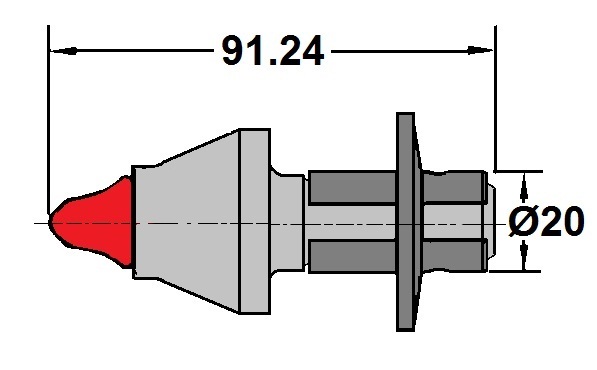

| CP26W
(CP076FB-19KBC-LRW |
3 | Conical- 76 Ser
Full Body 19mm Bell Cap |
 |

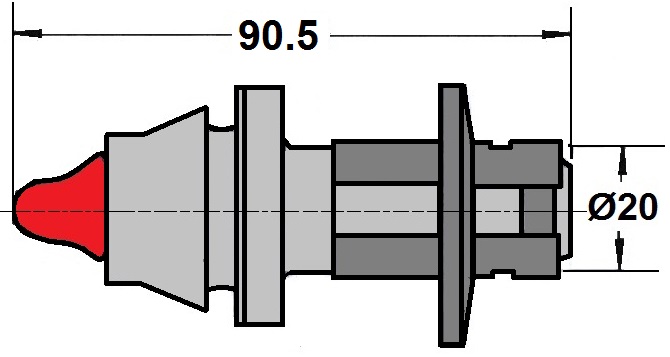

| ;CP27W
(CP076GFB-18BC-LRW) |
3 | Conical- 76 Ser
Grooved Flanged Body 18mm Bell Cap |
 |
| CP28W
(CP076FB-18BC-LRW) |
1
|
Conical- 76 Ser
Full Body 18mm Bell Cap |
|

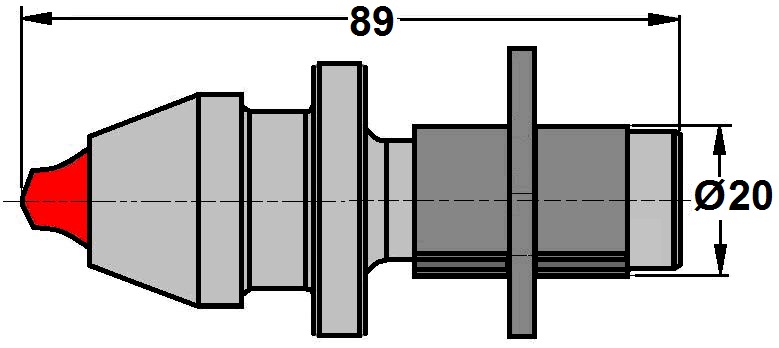

| CP29W
(CP076GFB-16BC-LRW) |
3
|
Conical- 76 Ser
Full Body 16mm Bell Cap |
 |
CONICAL PICK -86
| Part Number | Stock Code | Description
|
Drawing |

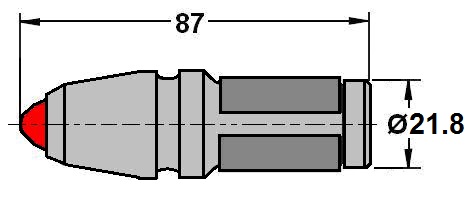

| CP30B
(CP086GNB-12DCI-LR) |
1
|
Flanged Head Body 12mm Cone Insert |
|

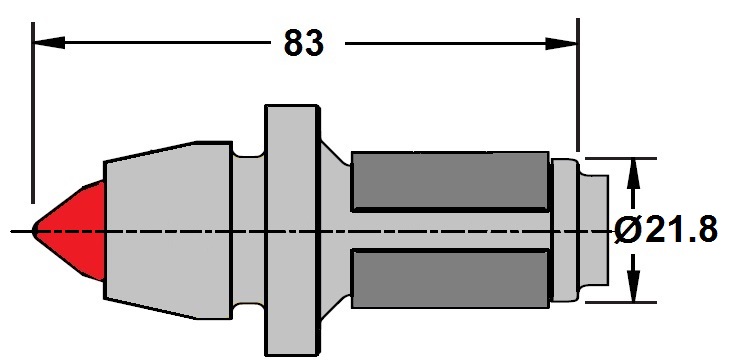

| CP34L
(CP086GFB-16DCC-LR) |
3
|
Conical- 86 Series
Flanged Head Body 16mm D/Cone Cap |
 |

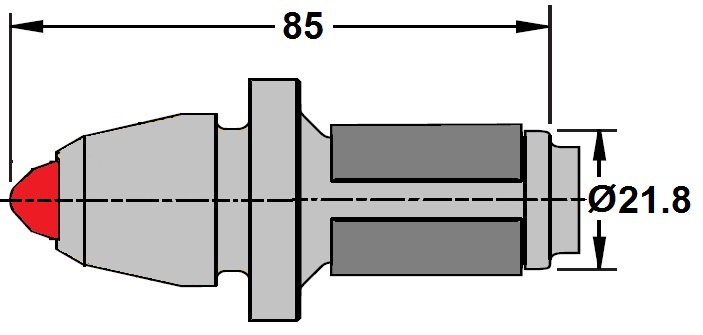

| CP35L
(CP086GFB-12DCI-LR) |
1 | Conical- 86 Ser
Flanged Head Body 12mm Cone Insert |
 |

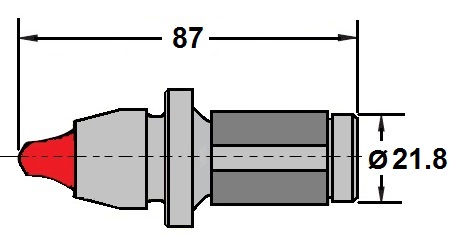

| CP37L
(CP086GFB-18BC-LR) |
1 | Conical- 86 Series
Flanged Head Body 18mm Bell Cap |
 |
CONICAL PICK -99
| Part Number | Stock Code | Description
|
Drawing |

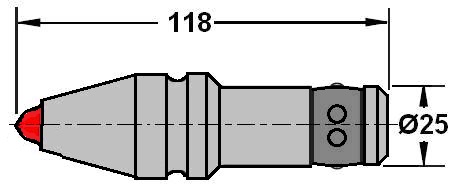

| CP41
(CP099GNB-12CI-SR) |
1
|
Grooved Narrow Body 12mm Cone Insert |
|

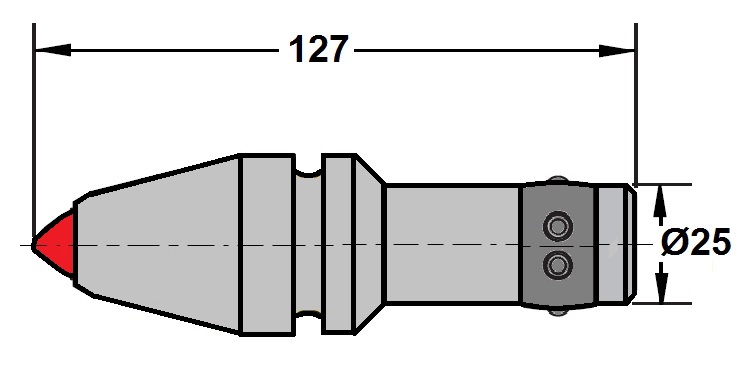

| CP42
(CP099GNB-16CI-SR) |
1
|
Conical- 99 Ser
Grooved Narrow Body 16mm Cone Insert |
 |

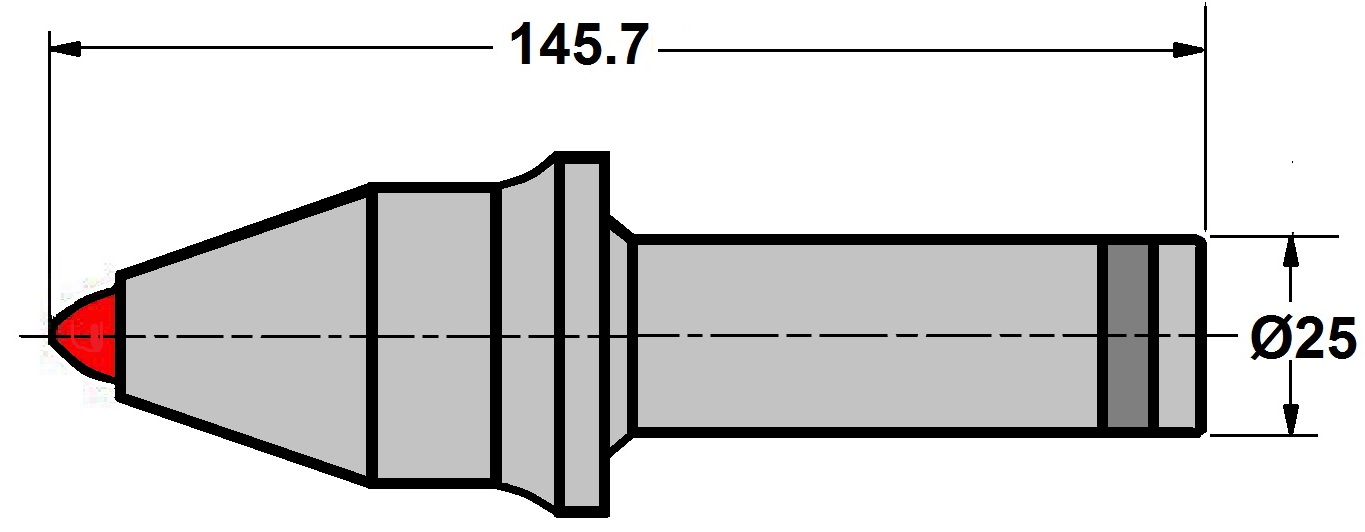

| CP43
(CP099FB-12DCI-CR) |
8 | Conical- 99 Ser
Full Body 16mm D/Cone Cap |
 |
| CP44
(CP099FB-16DCC-CR) |
8 | Conical- 86 Ser
Grooved Narrow Body 12mm Cone Insert |
 |
| CP45
(CP099FB-19CI-CR) |
8
|
Conical- 99 Ser
Full Body 19mm Cone Insert |
 |

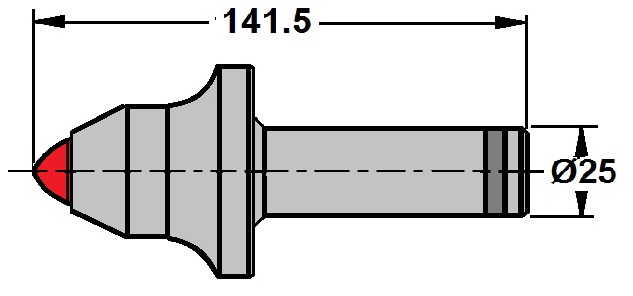

| CP46
(CP099FB-19BI-CR) |
1
|
Conical- 99 Ser
Full Body 19mm Ballistic Insert |
 |
CONICAL PICK -116
| Part Number | Stock Code | Description
|
Drawing |

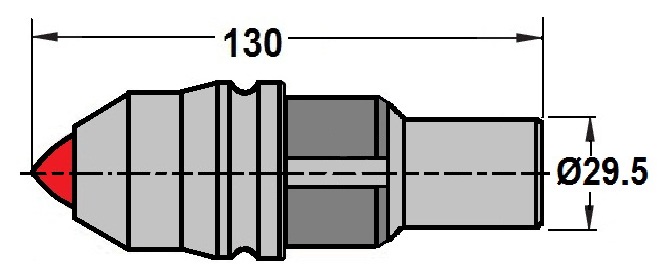

| CP60
(CP116GNB-22BI-MR) |
1
|
Grooved Narrow Body 22mm Ballistic Insert |
|

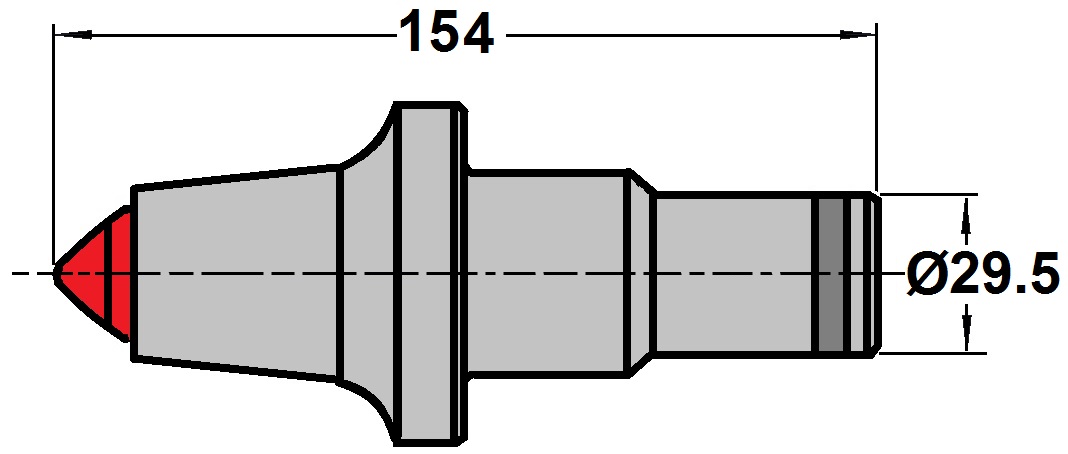

| CP61
(CP116FB-25MI-CR) |
1
|
Conical- 116 Stepped Shank
Full Body 22mm Ballistic Insert |
 |

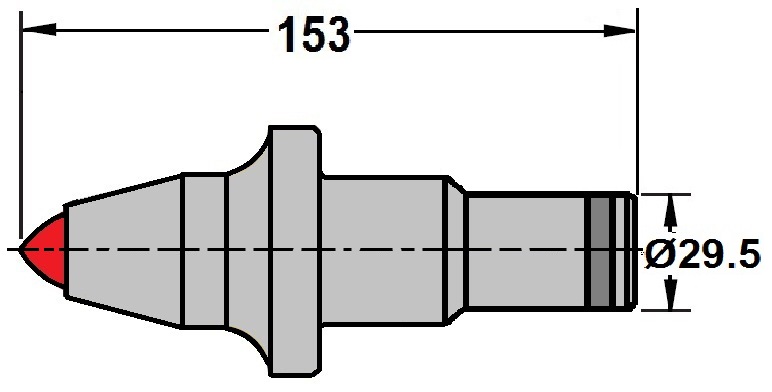

| CP62
(CP116FB-22BI-CR) |
3 | Conical- 116 Stepped Shank
Full Body 22mm Ballistic Insert |
 |

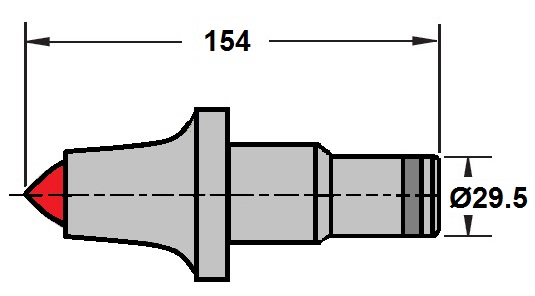

| CP63
(CP116FB-25BI-CR) |
8 | Conical - 116 Stepped Shank
Full Body 25mm Ballistic Insert |
 |
CONICAL PICK -118
| Part Number | Stock Code | Description
|
Drawing |

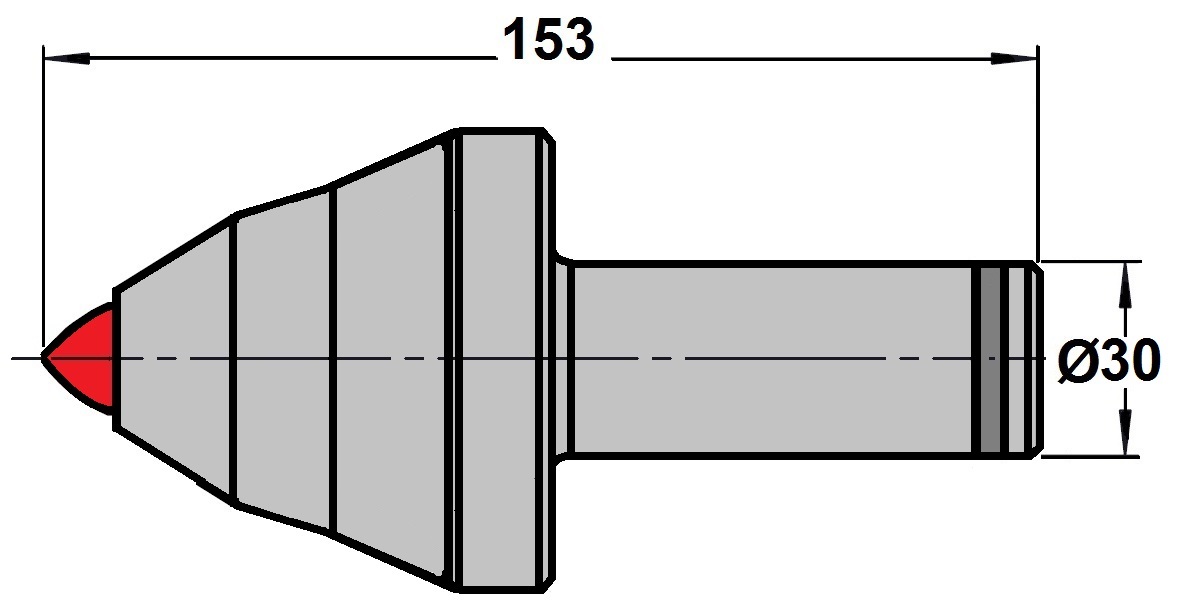

| CP70
(CP118FB-17SCI-CR) |
3
|
Shank Full Body 17mm S/Cone Insert |
|

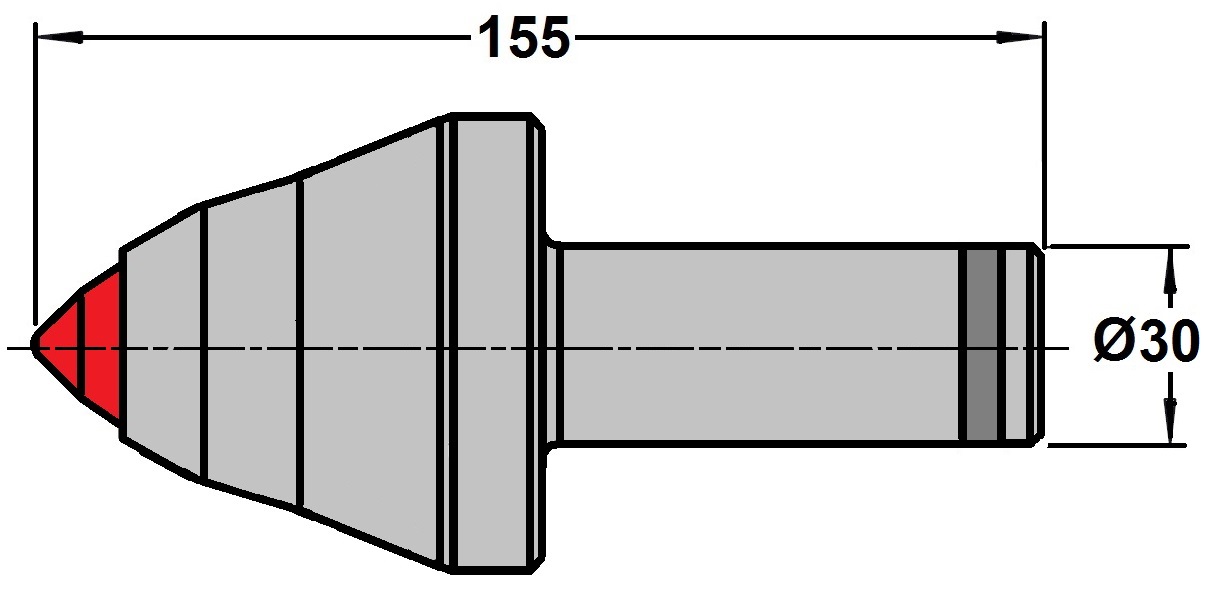

| CP71
(CP118FB-22BI-CR) |
1
|
Conical- 118 Straight
Shank Full Body 22mm Ballistic Insert |
 |

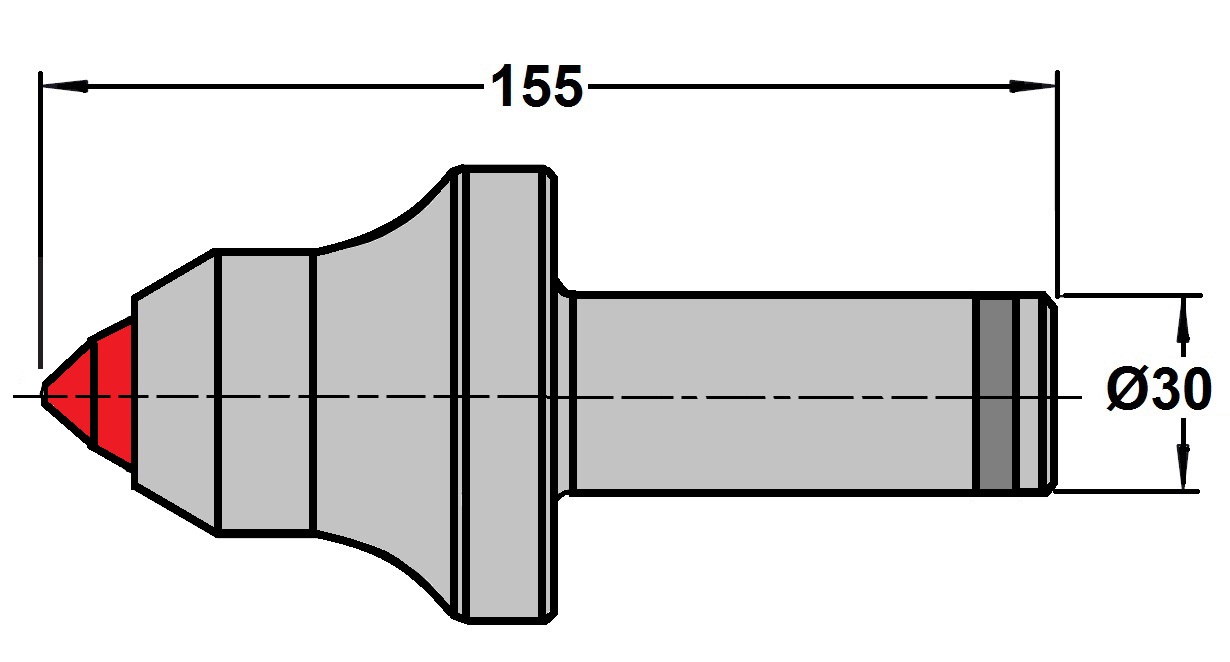

| CP72
(CP118FB-25MI-CR) |
1 | Conical- 118 Straight
Shank Full Body 25mm Mushroom Insert |
 |
